| 브랜드 이름: | CSJY |
| 모델 번호: | MBC2406 |
| MOQ: | 2개 |
| 가격: | Negotiate |
| 포장에 대한 세부 사항: | 캔버스 |
| 지불 조건: | T/T |

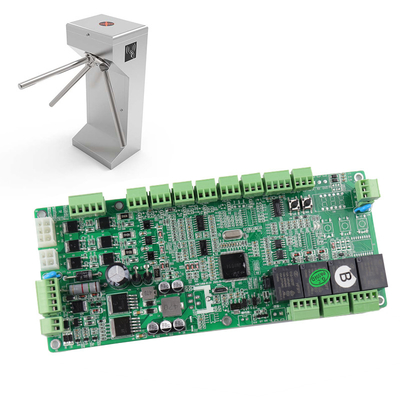

Tripod Turnstile Gate Controller Support 6 Pairs Sensor Interface Input Independently
Product Description
The Tripod Turnstile Gate Controller is a compact and intelligent control board specifically designed for tripod turnstile gates. It supports 6 pairs of sensor interface inputs independently, enabling precise detection and smooth bi-directional access control. Built for high-traffic environments, this controller integrates seamlessly with various access systems such as RFID readers, fingerprint scanners, and QR code terminals. Its modular design and stable performance make it ideal for modern pedestrian entrance management.
Specification
|
Input power supply |
DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended |
|
Adaptor motor |
DC brushless motor below 60W with 2400-line position feedback |
|
Communication mode |
RS232 serial communication, supporting Modbus protocol |
|
Infrared sensor |
6 independent interfaces, PNP, NPN normally open, open collector type |
|
Voice output |
external 8W 4Ω speaker |
|
Working environment |
-20℃ ~ 55℃, humidity below 90% (no condensation) |
|
Power-off |
DC12V battery, or optional super capacitor module |
6 Pairs of Independent Sensor Inputs: Ensures accurate passage detection, anti-tailgating, and timely response.
Bi-Directional Passage Control: Manages entry and exit directions separately with reliable logic control.
Wide Access System Compatibility: Supports integration with card readers, biometric devices, face recognition systems, and more.
Smooth and Safe Operation: Supports anti-pinch, auto-reset, and alarm triggering for unauthorized access.
LED Indicator & Sound Prompt Support: Easily guides users and alerts on abnormal usage or failures.
DC 12V/24V Power Supply Compatibility: Flexible voltage options for different installation environments.
ODM Customization Available: Firmware and hardware can be adapted to specific project needs.
swing gate
tripod turnstile
flap gate
sliding gate
speed gate
|
|
